ZLINE
ZLINE AUTOGRAPH EDITION 24" 1.2 CU. FT. BUILT-IN MICROWAVE DRAWER IN BLACK STAINLESS STEEL AND CHAMPAGNE BRONZE ACCENTS

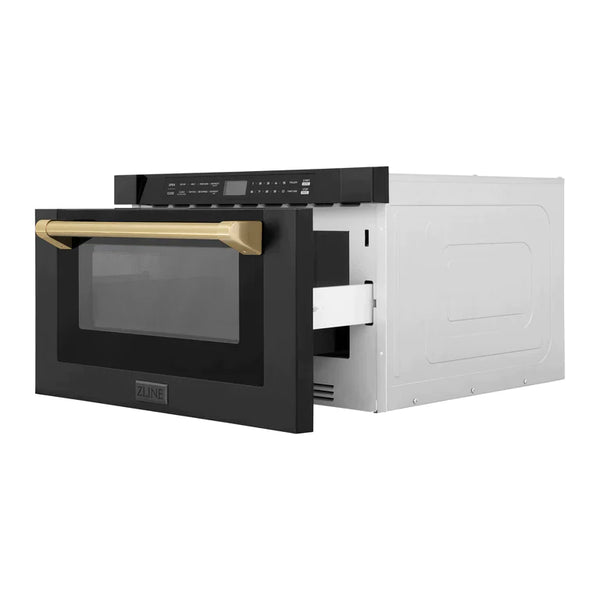

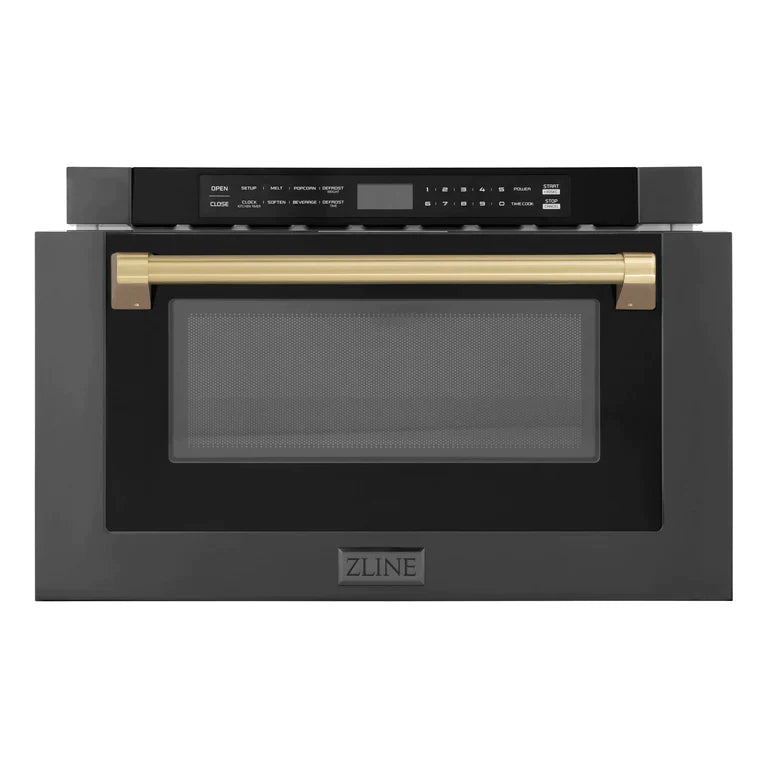

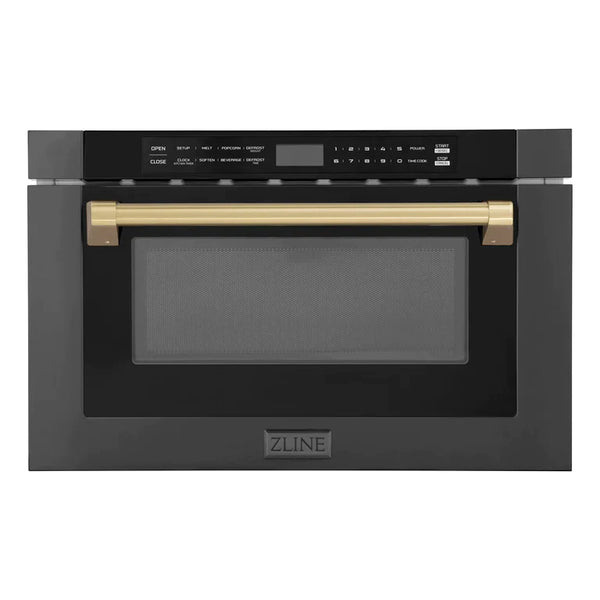

ZLINE Autograph Edition 24" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel and Champagne Bronze Accents
Couldn't load pickup availability







Description
The ZLINE Autograph Edition 24" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel and Champagne Bronze Accents is the perfect addition to your modern kitchen. With its sleek design and advanced features, it offers both convenience and style. Easily save counter space with its undercounter modern design and enjoy its top-loading design that allows you to transport hot dishes and prevent spills. Achieve perfect results for every dish with its various modes, and effortlessly open and close the microwave drawer with just the touch of a button.
Features

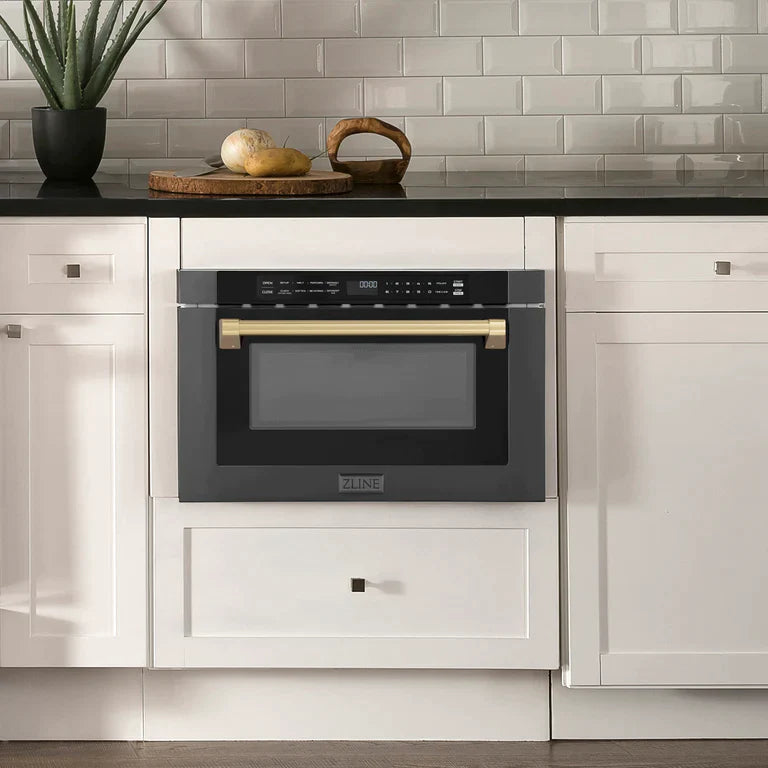

- Space-Saving: Undercounter modern design
- Top Access Design: Top-loading design for easy transportation of hot dishes
- Convenient Microwave Modes: Sensor cooking, defrost, popcorn, and beverage settings
- Auto-touch Open and Close: Open and close the microwave drawer with just the touch of a button

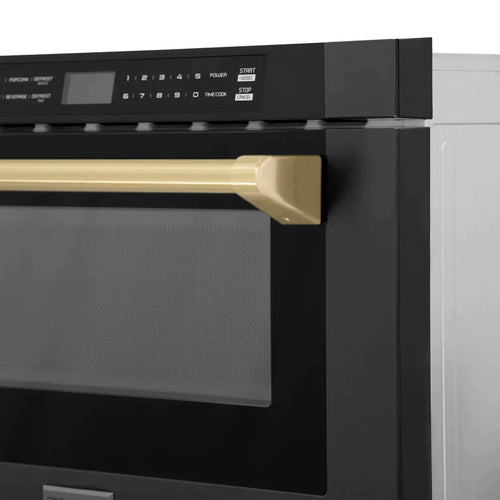

- Intuitive Control Panel: Angled control panel for easy use
- High-Powered Performance: 11 power levels, 1000 watt cooking power
- 1.2 cu. ft. Capacity: Fits coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Reheat and Defrost: Convenient functions to minimize cooking time
- Autograph Edition Series: Stainless steel finish paired with champagne bronze accent handles for an elegant look
- Manufacturer Warranty: 2 year parts warranty
- ADA Compliant: Easy-to-use front touch controls with a 45 degree angle design for ADA compliance
Specifications
Dimension | 23.5 in W x 23.6 in D x 14.9 in H |
Cut Out Dimensions | 22.13 in W x 23.5 in. D x 14.75 in H |
Interior Dimensions | 16 in. W x 16 in. D x 7 in. H |
Depth with Door Open | 38.75" without handle/ 40" with handle |
Capacity | 1.2 cu. ft. |
Electrical | 120V / 60HZ / 13A, Plug type: 5-15 Nema |
Output Power | 1,000W |
Noise Level | 45 decibels |
Mount Type | Drawer |
Control Type | Touch Screen - 11 Power Levels |
Warranty | 2 Year Parts Warranty |
Product Weight | 69.9 lbs |
Certifications | UL, DOE, CEC, NRCan |
Packaging Standard | ISTA 3A |
Downloads
Download the installation manual here: ZLINE 24 Inch 1.2 Cu. Ft. Microwave Drawer In Stainless Steel, MWD-1
Dimensions
The microwave drawer has the following dimensions:
- Overall: 23.5 in W x 23.6 in D x 14.9 in H
- Cutout: 22.13 in W x 23.5 in. D x 14.75 in H
- Interior: 16 in. W x 16 in. D x 7 in. H
- Depth with door open: 38.75" without handle/ 40" with handle
- Capacity: 1.2 cu. ft.
