MRCOOL
MRCOOL PRODIRECT 3.5 TON UP TO 14 SEER SPLIT SYSTEM A/C CONDENSER
MRCOOL ProDirect 3.5 Ton up to 14 SEER Split System A/C Condenser
Couldn't load pickup availability










Description
MRCOOL ProDirect 3.5 Ton up to 14 SEER Split System A/C Condenser
You’re not going to believe how much better your house feels after you scrap your old cooling unit and replace it with the ProDirect 3.5 Ton 14 SEER Split System A/C Condenser. The scroll compressor in this unit is the key to making your home feel comfortable throughout the summer, because it compresses the R-410A refrigerant and releases the absorbed heat so it’s ready to remove more heat from your home. This efficient unit is even more cost-effective with the piston flow control device. You can keep comfortable despite any outdoor conditions you put your condenser through!
This system is safeguarded by a galvanized steel cabinet and a Gold Fin® coil coating. The coil coating, which is non-toxic and environmentally friendly, can repel water from the system’s fins, ensuring that the unit will be without rust and corrosion. It also offers extra insulation. When this unit is installed, you can register it online to benefit from a superior warranty. When you need a new unit to bring you comfort, choose the ETL listed and AHRI certified MRCOOL ProDirect 3.5 ton split system A/C condenser.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 14 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.

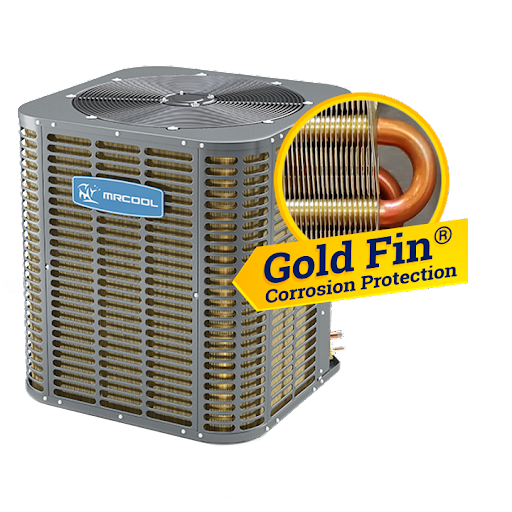

- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Specifications
Product Dimensions | 21 7/8W" x 21 7/8"D x 24 15/16"H |
Product Weight | 101 lbs |
Unit Type | Split System AC Condensers |
SEER | 14 |
EER | 11.7 |
CFM | 1,500 |
Cooling Capacity | 18,000 BTU |
Voltage | Requires a minimum of 230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker | 15A |
Refrigerant Type | R-410A |
Refrigerant Volume | 70.55 oz |
Decibel Rating | 57 dBA |
Air Flow Direction | 4-way |
Number of Speeds | 3 Speed |
Max Lineset Length | 50ft max |
Liquid Line Size | 3/8 inches |
Suction Line Size | 3/4 inches |
Compressor Motor Type | Rotary |
Condenser Fan Motor RPM | 870 |
Auxiliary Heater Available | Yes |
Certificates | ETL Listed AHRI |
Warranty | 10 Year Limited Warranty |
Proposition 65 Warning | Yes |
Restricted States | CA;NV;AZ;NM |
Manuals
About MRCOOL
INNOVATIVE HEATING & COOLING
MRCOOL ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible American manufacturing ingenuity can produce. These air conditioners rely on state-of-the-art innovative processes with advanced designs to deliver high efficiency air comfort in every room you need it!

Questions About MRCOOL?
Our customer support is here to help.
If you have any questions about MRCOOL products, call our toll-free number or talk to us on the chat.
We are here to help.
Fast and Free Shipping to Continental USA.
We have excellent customer service. Questions? Call Us at (725) 777-5484.
30 Day Easy Return Policy.
