MRCOOL GeoCool Heat Pump Horizontal 60K BTU, 5 Ton, Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return

Name: MRCOOL GeoCool Heat Pump Horizontal 60K BTU, 5 Ton, Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return
Brand: MRCOOL
SKU: GCHPH060TGTANXR
Price: 6736.0 USD
Availability: InStock

★ ★ ★ ★ ★ (10) reviews

by MRCOOL

SKU GCHPH060TGTANXR

$6,736.00 - $6,736.00

$6,736.00

$6,736.00 - $6,736.00

$6,736.00

Free Shipping to USA 🇺🇸
Authorized Dealer

Description

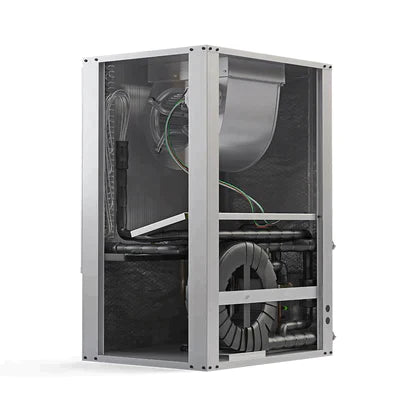

MRCOOL GeoCool Heat Pump Horizontal

Qualifies for federal tax credit, and other incentives
Highest energy efficiency in its class
Safety high and low pressure switches
Quiet operation
Full featured sinusoidal eon motor control technology
Insulated sloped stainless steel drain pan
Advanced unit control board with diagnostic LEDs
Double O-ring water connections
Easy service access
Optional domestic water pre-heating
Made in the USA
10 year compressor warranty

Specifications

Dimensions	61" D x 23.125" H x 25.75" W
EER	Ground Water (FULL) 24.00 / Ground Loop (FULL) 15.17
EER Part Load	Ground Water (PART) 31.00 / Ground Loop (PART) 23.17
COP 47	Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL)
COP 47 Part Load	Ground Water (PART) 5.20 / Ground Loop 4.60 (PART)
HSPF	Ground Water Fluid Flow Rate \| COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL)
AFUE	Ground Loop Fluid Flow Rate \| COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL)
CFM	COOLING (PART) 1950 - 2300 (FULL) / HEATING (PART) 1850 - 2200 (FULL)
Tonnage	5
Cooling Capacity	Ground Water (PART) 55200 - 72500 (FULL) / Ground Loop (PART) 53400 - 66500 (FULL)
Heating Capacity	Ground Water (PART) 47000 - 64500 (FULL) / Ground Loop (PART) 41000 - 46900 (FULL)
Voltage	230
Phase	1
Cycle	60
Stage	Two-Stage
Max Fuse Breaker	64(W/O Desuperh
Min Circuit Ampacity	38.6(
Color	Gray
Color Family	Gray
Max Coverage Area	2500
Refrigerant Type	R-410A
Compressor Motor Type	Scroll
Blower Motor Type	Axial Flux (No Shaft) BLA
Blower Motor Hp	3/4
Filter Type	Replaceable
Filter Size	20X25 & 20X22
UL Reconized	No
UL Listed	No
ETL Listed	Yes
ETL Certified	No
LEED Certified	No
ASHRAE Compliant	No
Energy Star Compliant	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	10 year registered parts limited warranty & 10 year compressor warranty
Base Warranty	5 year limited parts warranty
Has Batteries	No
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Restricted States	No
Net Weight	380
Freight Class	70

Manuals

About MRCOOL

INNOVATIVE HEATING & COOLING

MRCOOL ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible American manufacturing ingenuity can produce. These air conditioners rely on state-of-the-art innovative processes with advanced designs to deliver high efficiency air comfort in every room you need it!
