MRCOOL DIY Easy Pro Ductless Mini Split Heat Pump Complete System | Easy Pro

Name: MRCOOL DIY Easy Pro Ductless Mini Split Heat Pump Complete System | Easy Pro
Brand: MRCOOL
SKU: EZPRO-09-HP-11516
Price: 1252.0 USD
Availability: InStock

★ ★ ★ ★ ★ (9) reviews

by MRCOOL

SKU EZPRO-09-HP-11516

Save $500.00

$1,599.00

$1,599.00 - $2,198.00

$1,599.00

$1,252.00

$1,252.00 - $1,698.00

$1,252.00

Quantity

Free Shipping to USA 🇺🇸
Authorized Dealer

Description

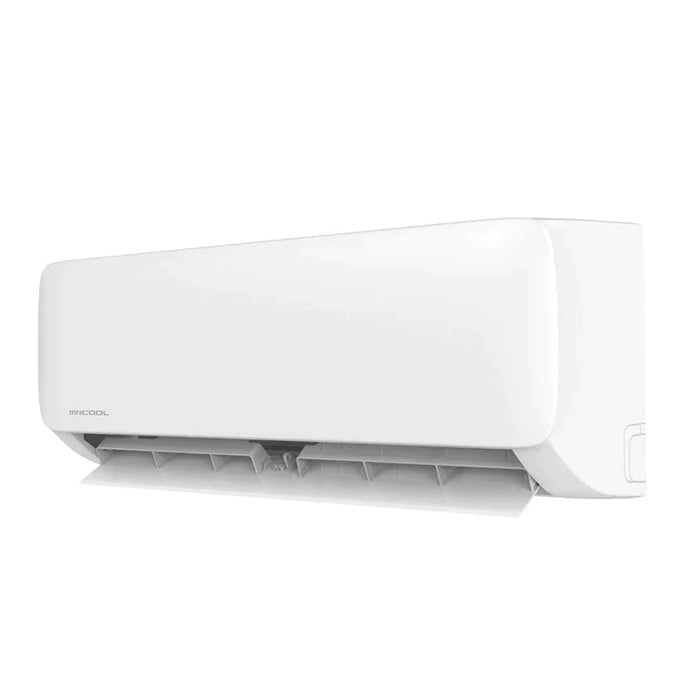

DIY Easy Pro Ductless Mini Split Heat Pump Complete System

Meet the easiest (and most affordable!) installation HVAC technology you can buy from MRCOOL!

Create the ultimate comfort level in your home or office with the MRCOOL ® Easy Pro® Ductless Mini-Split Heat Pump System. Heating or cooling up to 1,000 square feet efficiently with an 18 SEER, this unit is also easy to install thanks to 16 foot pre-charged line set with Fast Connection® fittings. You can choose one of the many operational modes to customize your heating and cooling experience such as Sleep Mode, Auto Mode, or Timer Mode. Maintaining the system is easy too as the filters need only to be rinsed with water before returning to the air handler. Cleaning both the indoor and outdoor units is as simple as wiping them down with a dry or damp cloth without any need for special cleaning products.

Controlling the system is easy too thanks to the included remote, the SmartHVAC app on your Apple or Android devices, or your Amazon Alexa and Google Assistant. Feel protected in your purchase with the 1-year compressor warranty and 2-year parts warranty in the unlikely event that something goes wrong. This is a full heating and cooling system that is easy to install and won’t break the bank.

Features

Up to 18 SEER
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Energy Efficient DC Inverter
ow ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
Includes features such as timer mode, refrigerant leakage detection, and more
Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant

9k Specs

Condenser Dimensions	28.35"W x 10.63"D x 19.49"H
Condenser Weight	54.45 lbs
Air Handler Dimensions	28.7"W x 7.87"D x 11.5"H
Air Handler Weight	17.64 lbs
SEER	20
EER	11.5
COP 47	3.14
HSPF	hspf4/hspf5 : 10.3/8.5
CFM	238.82 / 170.00 / 137.06
Cooling Capacity	9,000 BTU
Heating Capacity	10,000 BTU
Voltage	Requires a minimum of 115V/60HZ/20-30A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	30 A
Min Circuit Ampacity	20 A
Color	White
Rate Load	14.5 A
Max Coverage Area	Up to 350 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	24.69 oz
Decibel Rating	22.5 dBA to 38.5 dBA
Decibel Rating Low	22.5 dBA
Decibel Rating High	38.5 dBA
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75.2F
Line Set Length	16ft - Included
Max Lineset Length	25ft
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Compressor Motor Type	Rotary
Condenser Fan Motor RPM	850/500
Blower Motor Speeds	3
Blower Motor RPM	1050/810/690
Filter Type	Washable
Modes	Fan Only Sleep Mode Auto Cool Dry Heat
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote
Certifications	UL Listed Energy Star AHRI
Registered Warranty	2-year Parts/1-year Compressor

12k Specs

Condenser Dimensions	28.35"W x 10.63"D x 19.49"H
Condenser Weight	55.11 lbs
Air Handler Dimensions	31.57"W x 7.87"D x 11.61"H
Air Handler Weight	24.03 lbs
SEER	18
EER	9
COP 47	2.95
HSPF	hspf4/hspf5 : 11.1/9.5
CFM	300.00 / 241.18 / 176.47
Cooling Capacity	12,000 BTU
Heating Capacity	12,000 BTU
Voltage	Requires a minimum of 115V/60HZ/20-30A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	30 A
Min Circuit Ampacity	20 A
Color	White
Rate Load	13.9 A
Max Coverage Area	Up to 500 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	32.1 oz
Decibel Rating	27 dBA to 42 dBA
Decibel Rating Low	27 dBA
Decibel Rating High	42 dBA
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75.2F
Line Set Length	16ft - Included
Max Lineset Length	25ft
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Compressor Motor Type	Rotary
Condenser Fan Motor RPM	850/500
Blower Motor Speeds	3
Blower Motor RPM	1200/1040/960
Filter Type	Washable
Modes	Fan Only Sleep Mode Auto Cool Dry Heat
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote
Certifications	UL Listed Energy Star AHRI
Registered Warranty	2-year Parts/1-year Compressor

18k Specs

Condenser Dimensions	30.12"W x 11.93"D x 21.85"H
Condenser Weight	63.49 lbs
Air Handler Dimensions	38.23"W x 8.98"D x 12.64"H
Air Handler Weight	29.98 lbs
SEER	18.5
EER	9.8
COP 47	3.1
HSPF	hspf4/hspf5 : 9.7/8
CFM	382.35 / 300.00 / 264.71
Cooling Capacity	17,000 BTU
Heating Capacity	18,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/15.5 - 25A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	25 A
Min Circuit Ampacity	15.5 A
Color	White
Rate Load	10 A
Max Coverage Area	Up to 750 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	45.86 oz
Decibel Rating	23.5 dBA to 44.5 dBA
Decibel Rating Low	23.5 dBA
Decibel Rating High	44.5 dBA
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75.2F
Line Set Length	16ft - Included
Max Lineset Length	30ft
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Compressor Motor Type	Rotary
Condenser Fan Motor RPM	1200/700
Blower Motor Speeds	3
Blower Motor RPM	1200/1000/900
Filter Type	Washable
Modes	Fan Only Sleep Mode Auto Cool Dry Heat
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote
Certifications	UL Listed Energy Star AHRI
Registered Warranty	2-year Parts/1-year Compressor

24k Specs

Condenser Dimensions	35.04"W x 13.46"D x 26.5"H
Condenser Weight	97.66 lbs
Air Handler Dimensions	42.60"W x 9.21"D x 13.27"H
Air Handler Weight	35.27 lbs
SEER	18
EER	9
COP 47	3.08
HSPF	hspf4/hspf5 : 10.3/8.4
CFM	594.41 / 404.12 / 333.53
Cooling Capacity	24,000 BTU
Heating Capacity	25,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/21 to 35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	35 A
Min Circuit Ampacity	10 A
Color	White
Rate Load	10 A
Max Coverage Area	Up to 1,000 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	62.79 oz
Decibel Rating	27 dBA to 45 dBA
Decibel Rating Low	27 dBA
Decibel Rating High	45 dBA
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75.2F
Line Set Length	16ft - Included
Max Lineset Length	50ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Compressor Motor Type	Twin - Rotary
Condenser Fan Motor RPM	810/720
Blower Motor Speeds	3
Blower Motor RPM	1100/940/860
Filter Type	Washable
Modes	Fan Only Sleep Mode Auto Cool Dry Heat
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote
Certifications	UL Listed Energy Star AHRI
Registered Warranty	2-year Parts/1-year Compressor

Installation and Manuals

About MRCOOL

INNOVATIVE HEATING & COOLING

MRCOOL ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible American manufacturing ingenuity can produce. These air conditioners rely on state-of-the-art innovative processes with advanced designs to deliver high efficiency air comfort in every room you need it!
