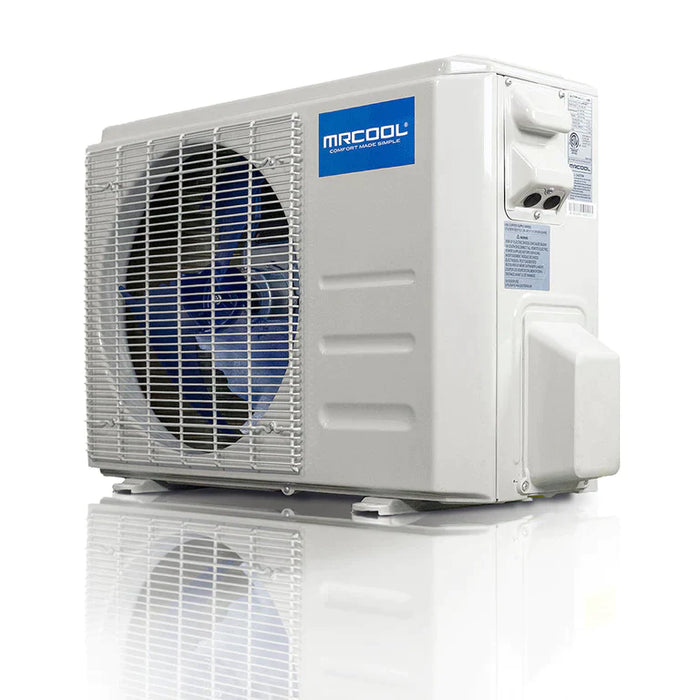

MRCOOL Advantage 4th Gen 36K BTU Ductless Single Zone Mini Split

Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point that’s hard to beat. This combination air handler and condenser is great for those looking for quality, efficiency, quiet operation, and affordability. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free.

This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and you’re able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant


  • Installation kit included
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant
  • Installation by a licensed professional required where applicable
  • 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, and auto restart functions
  • Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor


Condenser Dimensions 37.24"W x 16.14"D x 31.89"H
Condenser Weight 150.13 lbs
Air Handler Dimensions 49.57"W x 11.10"D x 14.25"H
Air Handler Weight 40.34 lbs
SEER 17.5
SEER2 17.5
COP 47
HSPF hspf4/hspf5 : 12/8
HSPF2 hspf4-2/hspf5-2: 8.7/6.8
Tonnage 3
Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Voltage Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 35 A
Min Circuit Ampacity 28 A
Color White
Max Coverage Area 1,500 sqft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 119.9 oz
Decibel Rating 40 to 54.5 dBA
Decibel Rating Low 40 dBA
Decibel Rating High 54.5 dBA
Inverter Yes
Min Ambient Cool 5F - 122F
Min Ambient Heat 5F - 75F
Line Set Length 25ft
Max Lineset Length 98.42 ft
Liquid Line Size 3/8 in
Suction Line Size 5/8 in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 950/250
Blower Motor RPM 1200/950/750
Auxiliary Heater Available No
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Includes Remote
Certifications UL Listed
CSA LIsted
ETL Listed
Registered Warranty
1-Year Compressor, 2-Year Parts and 1-Year remote
Restricted States GU;PR;VI




MRCOOL ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible American manufacturing ingenuity can produce. These air conditioners rely on state-of-the-art innovative processes with advanced designs to deliver high efficiency air comfort in every room you need it!
