MRCOOL

MRCOOL 21 IN. 3 TON R410A DOWNFLOW CASED EVAPORATOR COIL

MRCOOL 21 In. 3 Ton R410A Downflow Cased Evaporator Coil

(9) reviews
Regular price $755.00 USD
Regular price Sale price $755.00 USD
Save $-755.00 Sold out
american_express logoapple_pay logodiners_club logodiscover logofacebook_pay logogoogle_pay logomaster logoshopify_pay logovisa logo
View full details

Description

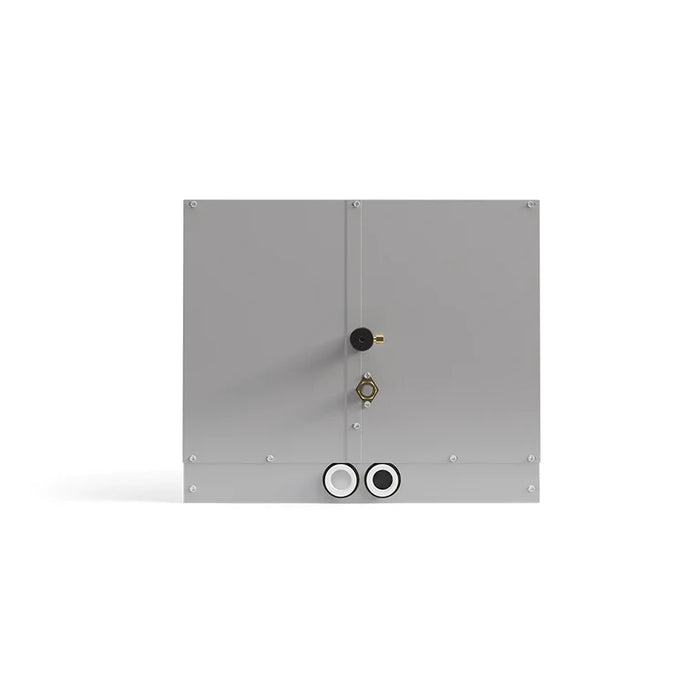

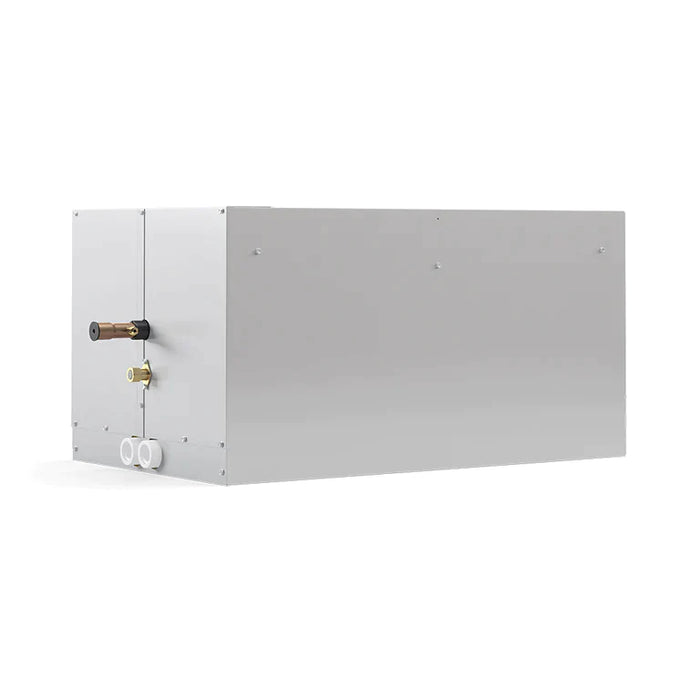

MRCOOL 21 In. 3 Ton R410A Downflow Cased Evaporator Coil

This is a brand new 3 ton, R410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Features

  • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Heavy-gauge steel constructed cabinet for optimal support of the furnace, no need for additional bracing or structure.
  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Removable Cabinet panels for easy coil service
  • Superior service access to components, withtubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty
  • Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning

Specifications

Product Dimensions 26 1/8"W x 16 1/8"D x 21"H
Product Weight 60 lbs
Tonnage 3
Cooling Capacity 36,000
Color Gray
Color Family Gray
Refrigerant Type R-410A
Drain Connection Size 3/4
Lineset Included No
Lineset Length 15ft, 25ft, 35ft, 50ft
Max Lineset Length 50ft
Lineset Fitting Type Sweat
Liquid Line Size 3/8
Suction Line Size 7/8
Certifications UL
AHRI
Warranty Registered 10 Year Parts Warranty
Contains Electronics Yes
Contains Chemicals Yes
Contains Aerosol Yes
Contains Compressed Gas Yes
Proposition 65 Warning Yes

Manuals
