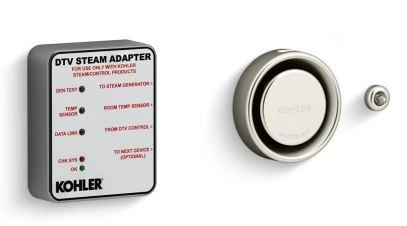

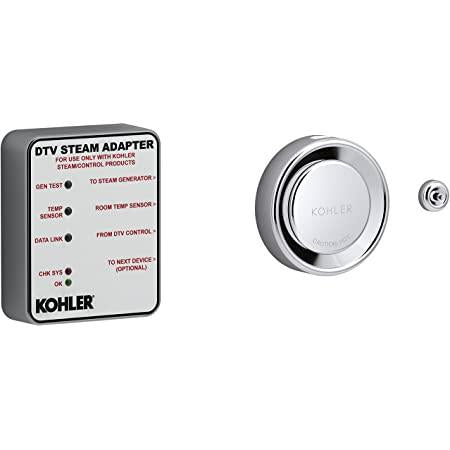

Kohler Invigoration DTV+ Series Steam Adapter Kit

The Kohler K-5548-K1 DTV+ Steam Adapter kit enables the DTV+ system to control an Invigoration® Series steam generator

Bringing steam to your steam shower space in just 60 seconds at the push of a button. The kit also includes a remote temperature sensor and a steam head with aromatherapy well, allowing you to add aromatic scents to enhance your steam experience. Not compatible with other manufacturers' steam generators.

Please note: DTV+ shower components sold separately.

• Allows Kohler Invigoration® Steam Generator to be controlled via the DTV+ Showering System.
• For use with Kohler Invigoration® Steam Generators between 5 and 15 kilowatts.
• Adjustable temperature settings between 90°F and 125°F.
• Aromatherapy reservoir on steam heads.
• Circular steam head design allows steam to be evenly dispensed throughout shower.
• 20-minute safety shutoff.
• Quick-connect RJ-12 cord and connector for simplified installation and service.
• Not compatible with other manufacturers' steam generators.

• Steam head
• Temperature sensor
• Adapter
• 10" Straight Cable
• 16" Crossover Cable
• 6" Straight Cable
• DTV Harness
• Dual Connector
• Gasket
• Mounting Arm
• Terminator
• Thermostor Harness
