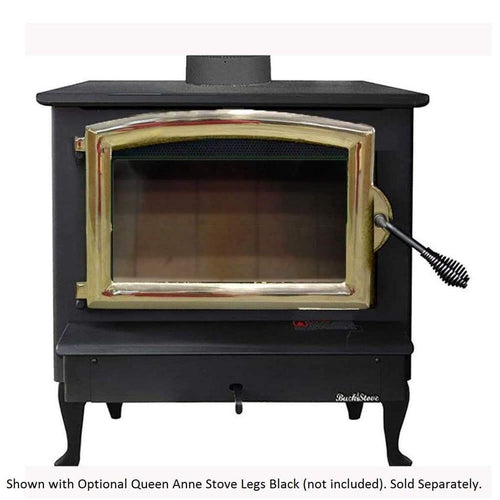

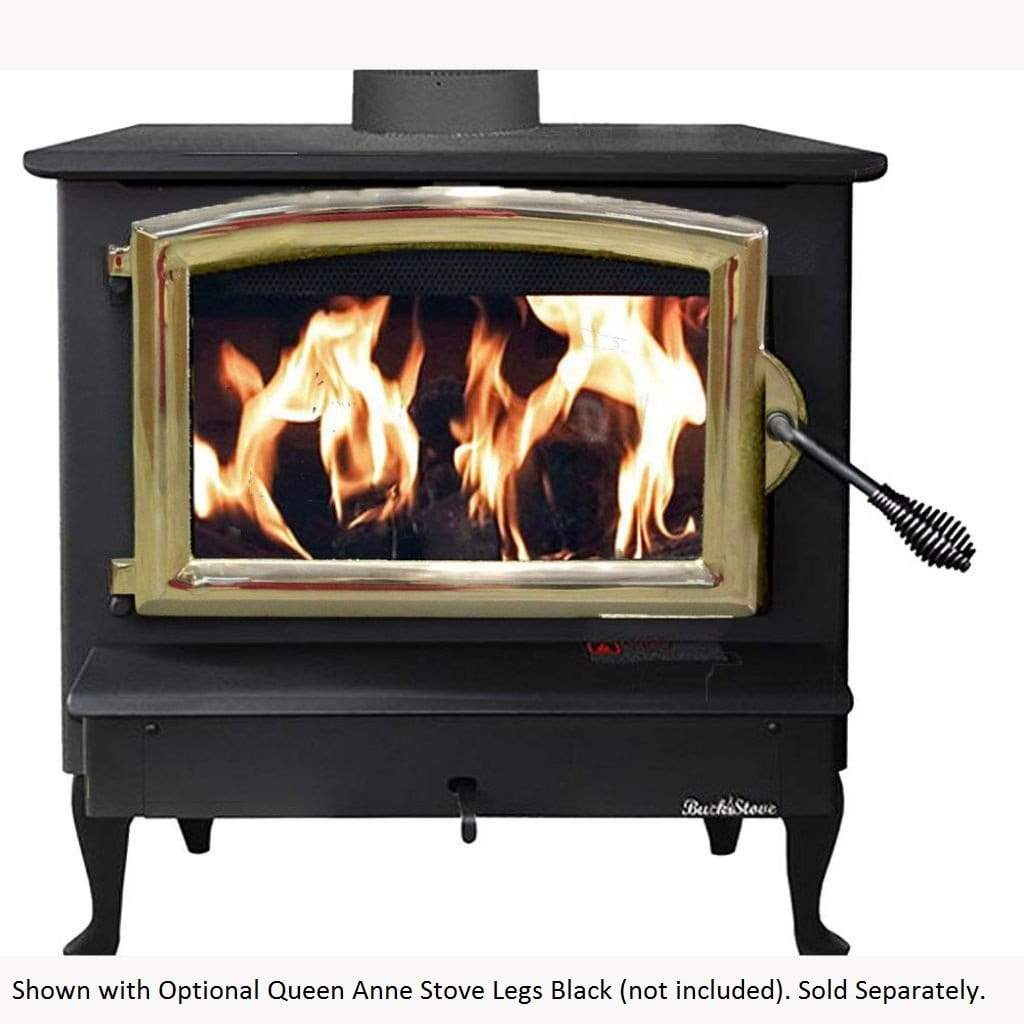

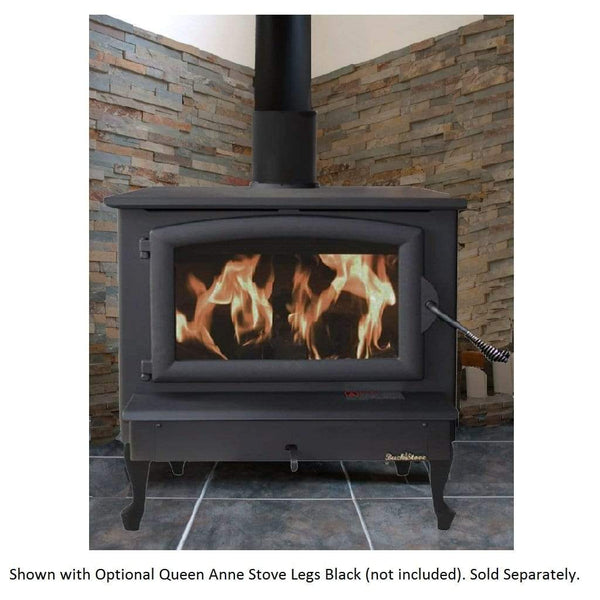

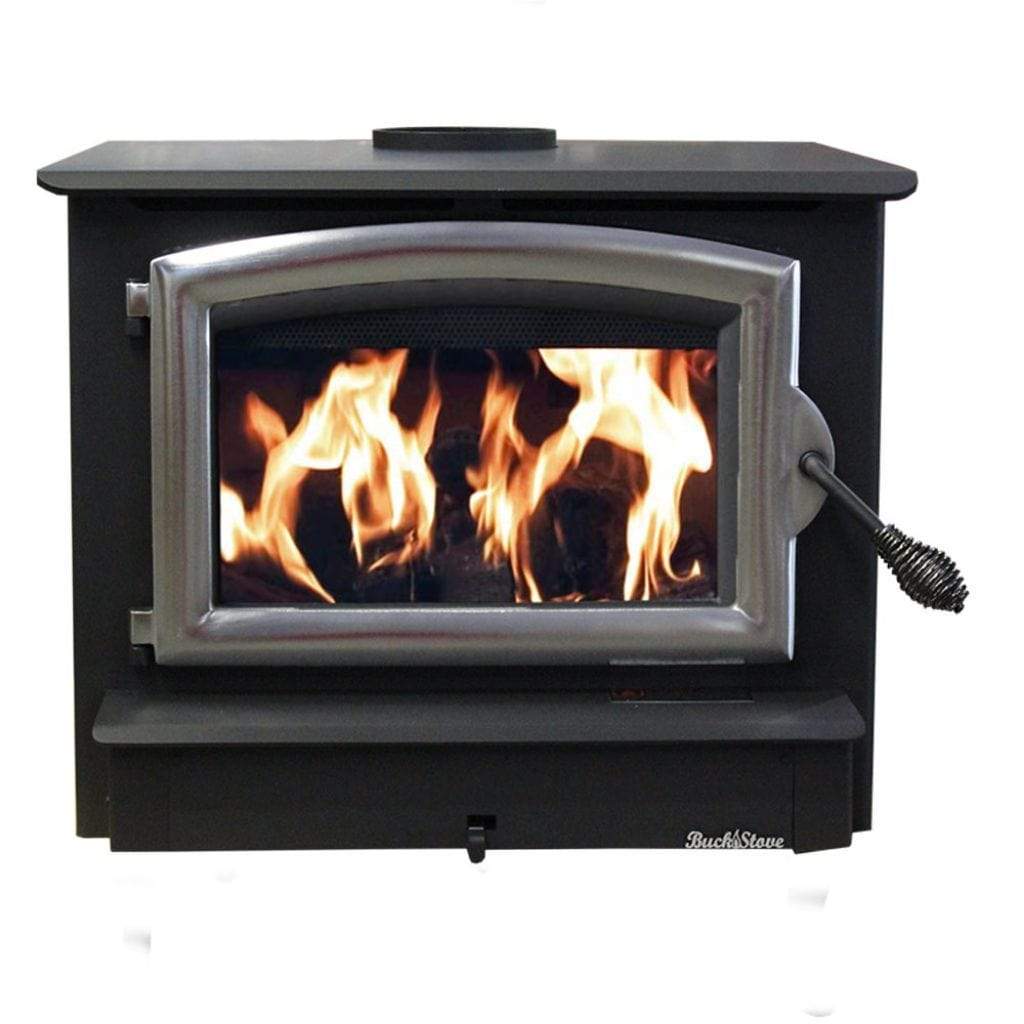

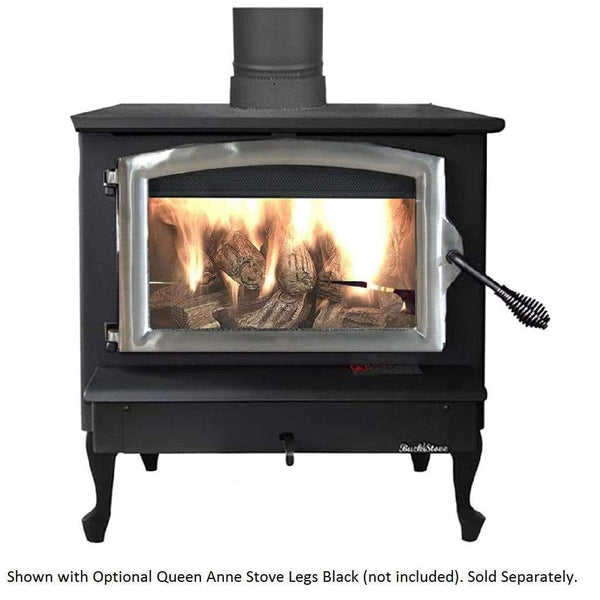

BUCK STOVE MODEL 74 NON-CATALYTIC WOOD BURNING STOVE WITH DOOR

Crafted in a traditional time-honored design, this non-catalytic series features a dual top heat exchanger and an oversized glass door with an air wash system to minimize cleaning. Optional blower systems are available for each unit.

About Model 74 Wood Stove

Model 74 is a non-catalytic wood burning stove designed to meet the most stringent emissions standards without the use of a catalytic combustor.

Model 74 has a BTU rating of up to 52,400 and can heat up to 2600 square feet. The Buck Stove model 74 delivers heavy-duty heat performance and is available as a masonry and pre-fabricated fireplace insert or freestanding unit.

At 73% efficiency, you will be getting more heat with less wood. Buck Stove has been manufacturing quality stoves in the United States for over 40 years! Add a blower for increased efficiency and heat circulation.

you can be sure Buck Stove is providing quality and craftsmanship. Beautiful, modern, and made to last Buck Stove products will be in your home for a long, long time. And get this, everything made by Buck Stove is crafted right here in the US.

• Size: 22 Inches
• Color: Black
• Product Dimensions: 27 5/8" W x 21 1/2" H x 22 3/8" D(FP74G, FP74)
• Non-catalytic
• Weighs 585 lbs.
• Freestanding wood stove
• Firebox volume of 2.6 cubic feet
• Easy operation and low maintenance
• Three design options to choose from
• Approved for use in prefab and mobile homes
• Accommodates 16" logs front to back or 22" side to side

• Maximum BTU Output with Dry Cordwood: 52,400
• Average Overall Efficiency: 73%
• Recommended Heating Area: 1500 to 2600 sq. ft.
• Maximum Log Size: 22"

*Please Note: This is for the stove only. Images are shown with Pedestal, Optional Trim Kit or Stove Legs. Not Included and sold Separately.

CA Residents: See Prop 65 WARNING

Pedestal

Outside Air Pedestal- FA P21B Color: Black Flue Shape: Material: Steel Product Type: Stove Pedestal Facilitates the feed of combustion air in a freestanding application Designed for the Buck Model 74 wood stove Used in place of the standard stove pedestal

Trim Kits

	Standard Trim Kit- PA FP51 Color: Black Standard trim kit Optional accessory Designed for use with Model 74 stoves
	Oversize Trim Kit- PA FP5112 Color: Black Oversize trim kit Optional accessory Designed for use with Model 74 stoves

Stove Legs

	Regular Size Queen Anne Stove Legs - Black- FA FS2191 Color: Black Material: Cast Iron Product Type: Stove Legs Elegant contoured leg design Designed for use with all Buck Stove wood and coal models Fits Buck gas Model 384 Easy installation and can be removed if appliance configuration changes
	Large Size Queen Anne Stove Legs - Black- FA FS9151 Color: Black Material: Cast Iron Product Type: Stove Legs Elegant contoured leg design Designed for use with all Buck Stove wood and coal models (except Model 261) Easy installation and can be removed if appliance configuration changes
	Regular Size Queen Anne Stove Legs - Gold- FA FS2191G Color: Gold Material: Cast Iron Product Type: Stove Legs Elegant contoured leg design Designed for use with all Buck Stove wood and coal models Fits Buck gas Model 384 Easy installation and can be removed if appliance configuration changes
	Large Size Queen Anne Stove Legs - Gold- FA FS9151G Color: Gold Material: Cast Iron Product Type: Stove Legs Elegant contoured leg design Designed for use with all Buck Stove wood and coal models (except Model 261) Easy installation and can be removed if appliance configuration changes
	Regular Size Queen Anne Stove Legs - Pewter- FA FS2191P Color: Pewter Material: Steel Product Type: Bay Window Kit Elegant contoured leg design Designed for use with all Buck Stove wood and coal models (except Model 261) Fits Buck gas Model 384 Easy installation and can be removed if appliance configuration changes
	Regular Size Queen Anne Stove Legs - Pewter- FA FS9151P Color: Pewter Material: Steel Product Type: Bay Window Kit Elegant contoured leg design Designed for use with all Buck Stove wood and coal models (except Model 261) Easy installation and can be removed if appliance configuration changes


Blower Kit

Blower Kit- MA 5126715 Product Type: Blower Designed for use in conjunction with Buck Model 26, 51, 74, and 261 wood stoves Adds mechanical convection to speed room heating Variable speed design allows for only the air flow desired Can be easily added after stove installation is complete

Close Clearance Shields

Close Clearance Shield- MA 21Shield Color: Black Material: Steel Product Type: Stove Shields Allows reduced clearances for a tighter stove installation Designed specifically for the Buck Model 21, Model 74 wood stove

Click to see venting products

venting products

4" Length DuraBlack Stovetop Adapter - 6DBK-AD
	Use to adapt DuraBlack stovepipe to appliance flue outlets.
DuraBlack 6" Diameter Telescoping Length With Trim - 6DBK-TL
	Use for a two-piece installation. Connects directly from stove to ceiling support box or finishing collar.
12" Length DuraBlack Single-Wall Black Pipe - 6DBK-12
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
24" Length DuraBlack Single-Wall Black Pipe - 6DBK-24
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
48" Length DuraBlack Single-Wall Black Pipe - 6DBK-48
	Use for a single-wall connector pipe. Requires 18” clearance to combustibles. Subtract 1 1⁄4” from length to calculate the installed length.
DuraBlack Slip Connector With Trim - 6DBK-SC
	Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus. The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
45-Degree DuraBlack Elbow - 6DBK-E45
	Offsets obstructions as needed. Elbows angles are now adjustable. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
90-Degree DuraBlack Elbow - 6DBK-E90
	Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation. Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
DVL Double-Wall Black Stovepipe Adapter - 6DVL-AD
	Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
6" DVL Double-Wall Adjustable Black Stovepipe - 6DVL-6ADJ
	8” clearance to ceilings, including cathedral ceilings. Use to add length to DVL pipe. 6” pipe adds 2”-5” of length.
29"-46" DVL Double-Wall Black Stovepipe Telescoping Length - 6DVL-46TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
40"-68" DVL Double-Wall Black Stovepipe Telescoping Length - 6DVL-68TA
	Use for a two-piece installation from stove to ceiling support box or finishing collar. No cutting is required.
6" DVL Double-Wall Black Stovepipe - 6DVL-06
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
12" DVL Double-Wall Black Stovepipe - 6DVL-12
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
18" DVL Double-Wall Black Stovepipe - 6DVL-18
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
24" DVL Double-Wall Black Stovepipe - 6DVL-24
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
48" DVL Double-Wall Black Stovepipe - 6DVL-48
	Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
45-Degree DVL Double-Wall Black Elbow - 6DVL-E45
	8” clearance to ceilings, including cathedral ceilings. Offsets obstructions as needed. Elbows angles are adjustable.
90-Degree DVL Double-Wall Black Elbow - 6DVL-E90
	Offsets obstructions as needed. Elbows angles are adjustable. Not recommended for rear exit appliances.
DVL/DuraBlack Chimney Adapter With Trim - 6DVL-ADT
	Use to connect from double-wall DVL to DuraTech, DuraPlus, and DuraLiner for a through-the-wall or ceiling support installation. Provides a strong mechanical connection.
DBK-DS DuraBlack Damper Section - 6DBK-DS
	Install at, or close to, the stove outlet in-line. 5” pipe section with the damper pre-installed.
6"-8" DuraBlack Slip Increaser With Trim - 6DBK-XS8
	Use to adapt from 6” DuraBlack to 8” DuraTech, DuraPlus, or DuraLiner at the ceiling support box or finishing collar. Adds 5" - 15" of length.
DBK-TC DuraBlack Trim Collar - 6DBK-TC
	Use as a decorative Trim Collar for DuraBlack connection to the chimney.
DVL Double-Wall Black Adapter/Damper Section - 6DVL-ADWD
	8” clearance to ceilings, including cathedral ceilings. Connects DVL pipe to the appliance flue outlet. Use as a stove adapter.
DVL Double-Wall Black Stovepipe Increaser - 6DVL-X8
	Use to increase from a smaller appliance flue outlet to a larger diameter chimney or stovepipe.
