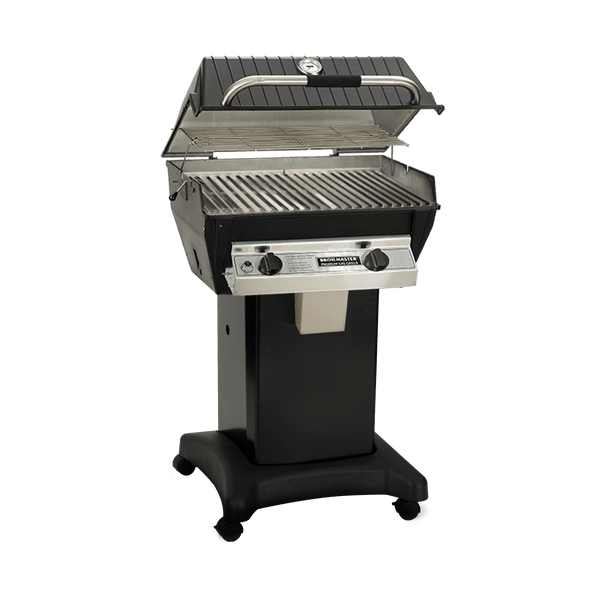

BROILMASTER R3 GAS GRILL HEAD WITH TWIN IR BURNERS

The BroilMaster R3 Gas Grill Head with Twin IR Burners provides a broad temperature range. The twin ceramic plaque infrared burners turn 40,000 BTUs into a temperature range of 350 degrees to 1,600 degrees F. The Broilmaster Infrared R3 features up to a 695 square inch cooking area.

• 695 Sq. In. of Total Cooking Area
• Heavy-Duty Cast Aluminum Construction
• 40,000 BTU
• Two Infrared Burners
• Stainless Steel V-Channel Cooking Grids
• Stainless Steel Control Panel
• Stainless Steel Retract-A-Rack

Requires:

• Cart or Post

Standard Features

Heavy-Duty Cast Aluminum Construction

• Designed to Last and Maintain Cooking Temp

Stainless Steel V-Chanel Cooking Grids

• Capture The Drippings From Food

Two Infrared Burners

• Provide Intense Heat For Perfect Searing

Stainless Steel Folding Retract-A-Rack

• Serves as an Added Cooking Level and Retracts For Additional Cooking Space

Stainless Steel Control Panel

• Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting

Other Features

• 40,000 BTU
• 695 Sq. In. of Total Cooking Area
• Heavy-Duty Cast Aluminum Construction
• Stainless Steel Control Panel
• Stainless Steel Retract-A-Rack
• Stainless Steel V-Channel Cooking Grids
• Two Infrared Burners

• R3 Owner's Manual

• Stainless Steel:  Yes
• Fuel Type: Liquid Propane, Natural Gas
• Weight: 81 lbs
• BTU Input: 40, 000
• Total Cooking Area: 695 Square Inches
• Overall Dimension:  W 26 3/4" H 19"D 18 3/4"
• Ignition: Electronic

Cart Options

Stainless Steel Storage Cart PSCB1

• Rust-resistant stainless steel construction
• Storage cabinet with door holds fuel tank, tools, and accessories
• Includes hooks for holding tools and grilling implements
• Removable casters for mobile or stationary use
• Easy to set up
• Weight: 42 lbs
• Dimensions: 23 × 20 × 28 in
• Color: Stainless Steel
• External Material: Stainless Steel

Black Painted Steel Cart DCB1

• Painted steel construction with molded plastic base
• Removable casters for mobile or stationary use
• Easy to set up
• Weight: 25.5 lbs
• Dimensions: 23 × 23 × 28 in
• Color: Black
• External Material: Painted Steel

Stainless Steel Cart PCB1

• Painted steel construction with molded plastic base
• Removable casters for mobile or stationary use
• Easy to set up
• Weight: 24 lbs
• Dimensions: 23 × 23 × 28 in
• Color: Stainless Steel
• External Material: Stainless Steel

Post Options

PAINTED STEEL PATIO POST BL26P

• Durable, rust-resistant stainless steel construction with cast iron base
• Weight: 30 lbs
• Dimensions: 6 × 4.5 × 26 in
• Color: Black
• External Material: Painted Steel

STAINLESS STEEL PATIO POST SS26P

• Durable, rust-resistant stainless steel construction with cast iron base
• Weight: 30 lbs
• Dimensions: 6 × 4.5 × 26 in
• Color: Stainless Steel
• External Material: Stainless Steel

PAINTED STEEL IN-GROUND POST BL48G

• Durable, rust-resistant stainless steel construction
• Weight: 8.3 lbs
• Dimensions: 6 × 4.5 × 48 in
• Color: Black
• External Material: Painted Steel

STAINLESS STEEL IN-GROUND POST SS48G

• Durable, rust-resistant stainless steel construction
• Weight: 8.3 lbs
• Dimensions: 6 × 4.5 × 48 in
• Color: Stainless Steel
• External Material: Stainless Steel

Shelf Options

BLACK SOLID SURFACE SIDE SHELF SKFPB2

• Durable composite construction with painted steel bracket
• Includes two integrated cup holders
• Weight: 6.5 lbs
• Dimensions: 18.5 × 21.25 in
• Color: Black
• External Material: Composite, Painted Steel

BLACK SOLID SURFACE SIDE SHELF SKFB2

• Side Shelf, Drop-Down Stainless Steel Supports, Solid Surface with Cup Holders
• Durable composite construction with painted steel bracket
• Includes two integrated cup holders
• Weight: 6.5 lbs
• Dimensions: 18.5 × 21.25 in
• Color: Black, Stainless Steel
• External Material: Composite, Stainless Steel

STAINLESS STEEL SIDE SHELF SKSS2

• Durable stainless steel construction
• Weight: 5 lbs
• Dimensions: 13.25 × 12 in
• Color: Stainless Steel
• External Material: Stainless Steel

STAINLESS STEEL DROP DOWN SHELF DPA153

• Durable, rust-resistant stainless steel construction
• Includes hooks for hanging tools and implements
• Compatible with DPA150 Side Burner & DPA151 Infrared Side Burner
• Weight: 7.5 lbs
• Dimensions: 17.25 × 14.75 in
• Color: Stainless Steel
• External Material: Stainless Steel

BLACK COMPOSITE SURFACE FRONT SHELF FKBLACK

• Durable composite construction with stainless steel bracket
• Includes two integrated cup holders
• Weight: 5 lbs
• Dimensions: 27.5 × 12 in
• Color: Black, Stainless Steel
• External Material: Composite, Stainless Steel
• Note: Not recommended for use with PSCB1 Cart

STAINLESS STEEL FRONT SHELF FKSS

• Durable, rust-resistant stainless steel construction
• Weight 5 lbs
• Dimensions 24 × 9.5 in
• Color: Stainless Steel
• External Material: Stainless Steel
• Note: Not recommended for use with PSCB1 Cart

Side Burners: (installed in DPA153 Side Shelf)

Infrared Side Burner (DPA151N, DPA151P)

• 10,000 BTU burner output
• Electronic ignition
• Compatible with Propane or Natural Gas installation
• Requires Broilmaster DPA153 side shelf*
• Weight: 12.5 lbs
• Dimensions: 17 × 12.5 in
• Fuel Type: Propane, Natural Gas
• External Material: Stainless Steel
• Grilling Surface BTUs: 10,000
• Main Burner Material: Stainless Steel
• Total Grilling Area: 200 Sq. Inches
• Ignition Type: Continuous Spark

Blue Flame Side Burner (DPA150)

• 15,000 BTU burner output
• Electronic ignition
• Emits blue flame with the conversion kit
• Compatible with Propane or Natural Gas installation
• Requires Broilmaster DPA153 side shelf*
• Weight: 9.5 lbs
• Dimensions: 17 × 12.5 in
• Fuel Type: Propane, Natural Gas
• External Material: Stainless Steel
• Grill Surface BTUs: 15,000
• Main Burner Material: Stainless Steel
• Total Grilling Area: 200 Sq. Inches
• Ignition Type: Continuous Spark

Other Accessories

Cast Aluminum Cover

• Protect your Broilmaster grill and cart when not in use with the Broilmaster grill cover. Three variations are available to fit over shelving, side burners, and other accessories. Covers are available in black only.

NG12 12ft Quick Disconnect Hose Kit

• Quick disconnect 3/8" natural gas 12' hose and coupling kit. The inside diameter of the hose are 3/8" and the outside diameter of the hose is about 5/8".

Stainless Steel Griddle

• From bacon, eggs, and pancakes to cookies, this super-duty griddle adds versatility to your Broilmaster grill. Made from thick stainless steel, the griddle includes a large cooking surface and drip tray.

Diamond Cooking Grids

• These diamond-patterned cooking girds are easy to cook on and clean, making them the perfect solution for cooking your fish and vegetables.

Single Stainless Steel V-Channel Single-Level Cooking Grid for R3

• This replacement single-level cooking grid is designed for use on Broilmaster R3 and R3B series gas grills. Made of stainless steel and features a V-channel design. Sold individually.

Gas Conversion Kit

BCK1004 Propane to Natural Gas

• Convert your Broilmaster Fits T3, R3, R3B BBQ Grill from propane to natural gas with the Broilmaster Conversion Kit. This orifice will be easy to install with all the parts you need.

NOTE: Part BCK1004 is the factory authorized replacement for the following parts, which are no longer available: B101276

BCK1006 Natural Gas to Propane

• Convert your Broilmaster R3 BBQ Grill from natural gas to propane with the Broilmaster Natural Gas to Propane Conversion Kit This orifice will be easy to install with all the parts you need.
