BROILMASTER 42-INCH STAINLESS STEEL BUILT-IN GAS GRILL

This Broilmaster Gas Grill comes equipped natural gas and packed with an LP gas conversion kit.

We designed a wider, deeper grill to maximize your cooking experience. Every Broilmaster Stainless Grill comes fully loaded with a variety of standard
features, offering both convenience and versatility. With the ability to roast, sear, smoke, grill, or bake, and numerous features for convenience, the
Broilmaster Stainless Grill is the only grill you’ll ever need.

Grill Head features

• 304 Stainless Steel Construction
• Double Lined Easy Spring Assist Open Lid
• Retract-A-Rack
• Interior Cooking Lights

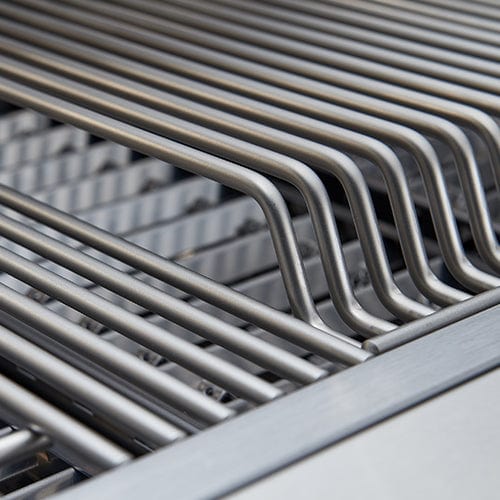

• Multi-Level Cooking Grids

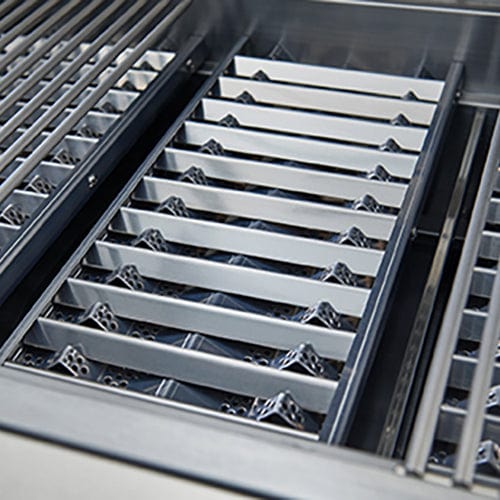

• Flare Control Vaporizer
• Heat Zone Dividers

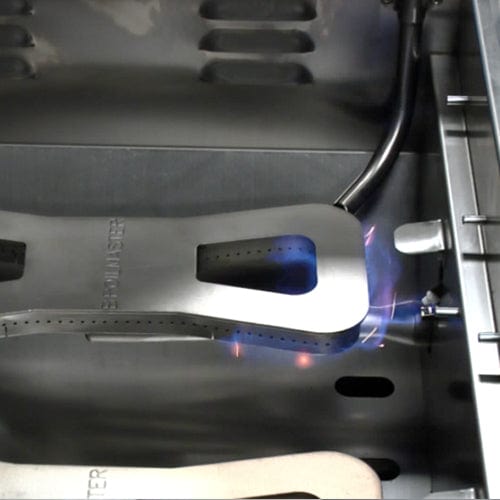

• Cast Stainless Steel Bow Tie Burner
• (18,000 BTUs)
• Flame Thrower Ignition
• Control Knob Lights
• Easy Slide Drip Tray

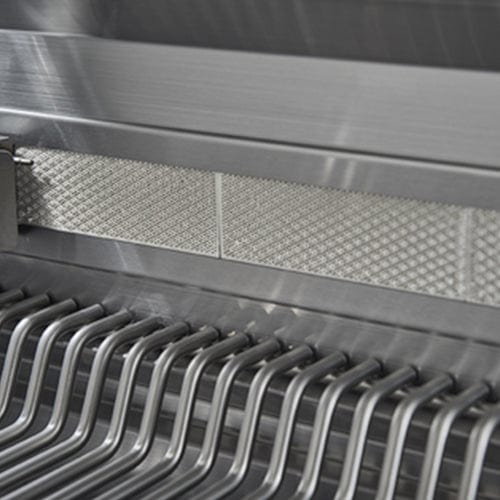

• Rotisserie Infrared Burner (11,000 BTUs)

Cart Features

• Includes two soft close doors for easy storage.
• Side shelves provide additional space for food prep, and fold down for convenient storage when not in use.
• Locking Casters

Manual for Broilmaster Stainless Steel Series (BSG262, BSG343, BSG424)
Quick Start Guide for Broilmaster Built-In Stainless Steel Gas Grills

• Brand: Broilmaster
• SKU: BSG424N
• Dimensions: 11 3/4”H x 39 1/2”W x 21”D
• Weight: 229 lbs
• No. of Burners: 4
• BTU: 18,000 on each bow tie burner up to 72,000 combined
• Fuel type: Natural Gas
• Cooking Area: Up to 918 sq. In

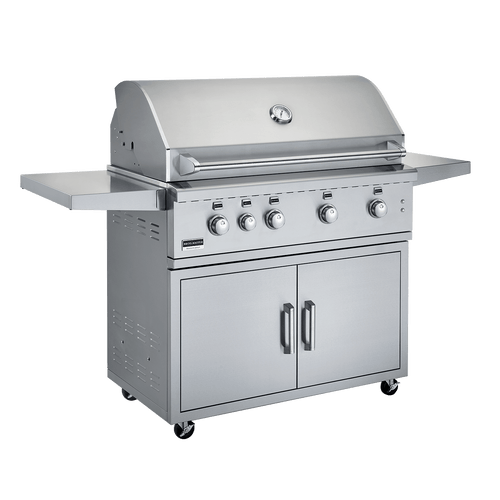

Stainless Steel Cart

Put your Broilmaster Stainless BSG424 grill where you want it with this BSACT42 stainless cart. The side shelves provide extra space for food preparation and fold for convenient grill storage when not in use. Rubber stoppers ensure the side shelves always fold gently. Two soft close doors give you access to convenient storage space. The heavy-duty casters on each wheel allow you to move your Broilmaster grill with ease or secure your grill by locking them in place. The BSACT42 stainless steel cart provides convenience by allowing you to put your grill almost anywhere you want. The side shelves provide additional food preparation space and the soft close doors allow for easy storage.

• Dimensions in inches: W42" H37 1/4" D23 3/4"

Grill Head Weather Cover- Black Only

Protect your built-in Broilmaster Stainless gas grill when not in use with the grill head cover(BSACV42S). Three sizes of this cover are available to perfectly cover each Broilmaster Stainless gas grill head.

Cart and Grill Weather Cover- Black Only

Protect your Broilmaster Stainless gas grill and cart when not in use with the long grill cover(BSACV42L). Three sizes of this cover are available to perfectly fit each Broilmaster Stainless gas grill and cart.

Insulated Sleeve

The Broilmaster Stainless gas grill head requires an insulated sleeve(BSASL42) for installation into combustible materials. Constructed with durable 304 stainless steel, the insulated sleeve prevents areas surrounding the grill head from overheating.

Infrared Sear Burner (replaces one Bowtie Burner)

The available infrared sear burner (BSAVR) allows you to cook at high temperatures and lock in juices with 18,000 BTUs. Easily replace one of the Bow Tie burners on your Broilmaster Stainless gas grill for the infrared sear burner.

Smoker Tray-Drop In

Experience the flavor of real wood smoke. Add the smoker tray (BSATY) to your Broilmaster Stainless gas grill, place soaked wood chips into the smoker tray, set the control knob to the desired setting, and the holes in the box will guide smoke over your food.

• Constructed of Durable Stainless Steel with a Brushed Surface
• Adds Outstanding Smoky Flavor to Grilled Foods with no Mess
• Allows Flavor-Enhancing Wood Chips to Smolder, not Flame

Rotisserie Kit 42" Grill

The rotisserie kit (BSASL42) allows you to roast a whole chicken, pork loin, roast, and much more in the convenience of your Broilmaster Stainless gas grill. The rotisserie kit and included counter weight evenly roasts large cuts of meat from every angle.

Quick Disconnect Hose Kit 12 ft ( NG12 )

Quick disconnect 3/8" natural gas 12' hose and coupling kit. The inside diameter of the hose is 3/8" and the outside diameter of the hose is about 5/8". Also replaces part# B100262.

NOTE: Part NG12 is the factory authorized replacement for the following parts, which are no longer available:

• B100262
• Fuel Type: Natural Gas

Hose & Regulator w/ QCC (B069756)

Female pipe fitting for use with 20 lb propane tank

For Built-In Grill Components

For Built-In Grill Components

NOTE: Island not for sale

Side Burners for Island Component

Single Side Burner- 12 Inches, Drop-in

The 12-inch single side burner (BSAF12D) drops into your outdoor kitchen space to gives you the capabilities of a traditional stovetop. The single burner is perfect for creating side dishes, preparing sauces, and sautéing veggies while you grill the main course. The knob gives you control of the burner with a maximum heat output of 12,000 BTUs. If installing the 12-inch single side burner into combustible material, you must first install an insulated sleeve

• Cut Out Dimensions: 3"H x 11 1/4"W x 18D
• Fuel Type: Natural Gas
• For use with: BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Double Side Burner- 12 Inch, Slide-in

The 12-inch double side burner (BSABF12) slides into your outdoor kitchen space to gives you the capabilities of a traditional stovetop. Two knobs allow you to control the temperature of each burner individually, making it perfect for creating side dishes, preparing sauces, and sautéing veggies while you grill the main course. The double inch side burner reaches up to 24,000 BTUs between both burners. If installing the 12-inch double side burner into combustible material, you must first install an insulated sleeve.

• Cut Out Dimensions: 11 3/4"H x 11 7/8"W x 21"D
• Fuel Type: Natural Gas
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

 Power Side Burner -16 Inch, Slide-in

The 16-inch two-ring power burner (BSABW16) slides into a built-in grill application. Two knobs individually control the temperature of the inner and outer cooking areas allowing up to 60,000 BTUs or down to 7,000 BTUs. The power burner allows you to quickly bring water to a boil. If installing the 16-inch power side burner into combustible material, you must first install an insulated sleeve.

• Cut Out Dimensions: 11 3/4"H x 15"W x 19"D
• Fuel Type: Natural Gas
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Note: All Side Burners come ready for Natural Gas and include lid and propane conversion kit.

Insulated Sleeves for the Side Burners

Insulated Sleeve for 12” Double Side Burner-BSABF12

The Broilmaster Stainless gas grill head requires an insulated sleeve( BSASL12) for installation into combustible materials. Constructed with durable 304 stainless steel, the insulated sleeve prevents areas surrounding the grill head from overheating.

• Cut Out Dimensions: 12 7/8”H x 13 3/8”W x 22 1/8”D
• For use with BSABF12 Side Burner
• Full Drip Tray

Insulated Sleeve for 16 Inch Power Side Burner-BSABW16

The Broilmaster Stainless gas grill head requires an insulated sleeve (BSASL16) for installation into combustible materials. Constructed with durable 304 stainless steel, the insulated sleeve prevents areas surrounding the grill head from overheating.

• Cut Out Dimensions: 12 7/8”H x 16 3/8”W x 20”D
• For use with BSABW16 Side Burner
• Full Drip Tray

Door Components

Broilmaster 42" Double Door-BSAD4222D

The 34-inch double access door set, built with high-quality 304 stainless steel, fits perfectly under the Broilmaster Stainless BSG343 gas grill head in a built-in application. Soft close doors prevent hard closures, keeping contents in place and extending the life of the doors

Features:

• Type: Double Doors
• Material: Stainless Steel
• Soft Close Feature Prevents Hard Closures
• Doors are Double-Lined and Accented with Large Handles
• Cut-Out Dimensions: 19 1/4"H x 31 1/4"W

Broilmaster 17"W x 22"H Single Vertical Door-BSAD1722

Optimize the storage space in any outdoor kitchen with the 17-inch single door, built with high quality 304 stainless steel. Soft close doors prevent hard closures, keeping contents in place and extending the life of the doors.

Features:

• Type: Single Door
• Material: Stainless Steel
• Allows Access to the Interior to your Island or Bar
• Provides Storage in your Outdoor Kitchen
• Cut-Out Dimensions: 19 1/4"H x 14 1/4"W
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Broilmaster 24"W x 22"H Single Vertical Door-BSAD2422

Optimize the storage space in any outdoor kitchen with the 24-inch single door, built with high quality 304 stainless steel. Soft close doors prevent hard closures, keeping contents in place and extending the life of the doors.

Features:

• Type: Single Door
• Material: Stainless Steel
• Allows Access to the Interior to your Island or Bar
• Provides Storage in your Outdoor Kitchen
• Cut-Out Dimensions: 19 1/4"H x 21 1/4"W
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Broilmaster 42" Single Door / Triple Drawer Combo

Optimize the storage space of any outdoor kitchen with the 42-inch wide single door, double drawer configuration(BSAW4222ST), built with high quality 304 stainless steel. Soft close drawers prevent hard closures, keeping contents in place and extending the life of the drawers.

Features

• 304 Stainless Steel
• Soft Close Door and Drawer
• Dimensions: 19 3/8"H x 39 1/4"W x 19 3/4"D
• Weight: 81 lbs

Drawer Components

Broilmaster Trash Drawer-BSAW1826R

Keep waste out of sight with the 18-inch roll-out waste drawer. The waste drawer, built with high quality 304 stainless steel, installs into any outdoor kitchen and allows you to conveniently dispose of waste while grilling. The soft close drawer prevents hard closures, keeping contents in place and extending the life of the drawer.

Features:

• Type: Drawer
• Constructed of Stainless Steel
• For use with Roll-Out Waste Container
• Cut-Out Dimensions: 23 1/4"H x 15 1/4"W x 16 1/2"D
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Broilmaster 18 Inch Triple Drawer-BSAW1826T

Optimize the storage space in any outdoor kitchen with the 18-inch wide triple drawer, built with high quality 304 stainless steel. Soft close drawers prevent hard closures, keeping contents in place and extending the life of the drawers.

Features:

• Type: Triple Drawer
• 304 Grade Stainless Steel Construction
• Soft-Close Feature
• Extend your Storage Capability
• Cut-Out Dimensions: 23 1/4"H x 15 1/8"W x 19 3/4"D
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Broilmaster 20 Inch Single Drawer-for Propane Tank-BSAW2022

Keep your propane tank out of sight with the 20-inch slide-out propane tank drawer. The propane tank drawer, built with high quality 304 stainless steel, installs into any outdoor kitchen and allows you to conveniently and safely conceal your grill’s propane tank. The soft close drawer prevents hard closures, keeping contents in place and extending the life of the drawer.

Features:

• Type: Single Drawer
• 304 Grade Stainless Steel Construction
• Soft-Close Feature
• Modern Design
• Cut-Out Dimensions: 19 1/4"H x 17 1/4"W x 16"D
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills

Broilmaster 20 Inch Double Drawer-BSAW2022D

Optimize the storage space in any outdoor kitchen with the 20-inch wide double drawer, built with high quality 304 stainless steel. Soft close drawers prevent hard closures, keeping contents in place and extending the life of the drawers.

Features:

• Type: Double Drawer
• 304 Grade Stainless Steel Construction
• Soft-Close Feature
• Elegant Addition to any Outdoor Cooking Area
• Fashionable Stainless Steel Look
• Cut-Out Dimensions: 19 1/4"H x 17 3/8"W x 19 3/4"D
• For use with BSG262, BSG343 and BSG424 Stainless Steel Gas Grills
