MRCOOL 4 Ton 16 SEER Split System Air Conditioner Condenser

Name: MRCOOL 4 Ton 16 SEER Split System Air Conditioner Condenser
Brand: MRCOOL
SKU: MAC16048A
Price: 1830.0 USD
Availability: InStock

★ ★ ★ ★ ★ (9) reviews

by MRCOOL

SKU MAC16048A

$1,830.00 - $1,830.00

$1,830.00

$1,830.00 - $1,830.00

$1,830.00

Free Shipping to USA 🇺🇸
Authorized Dealer

Description

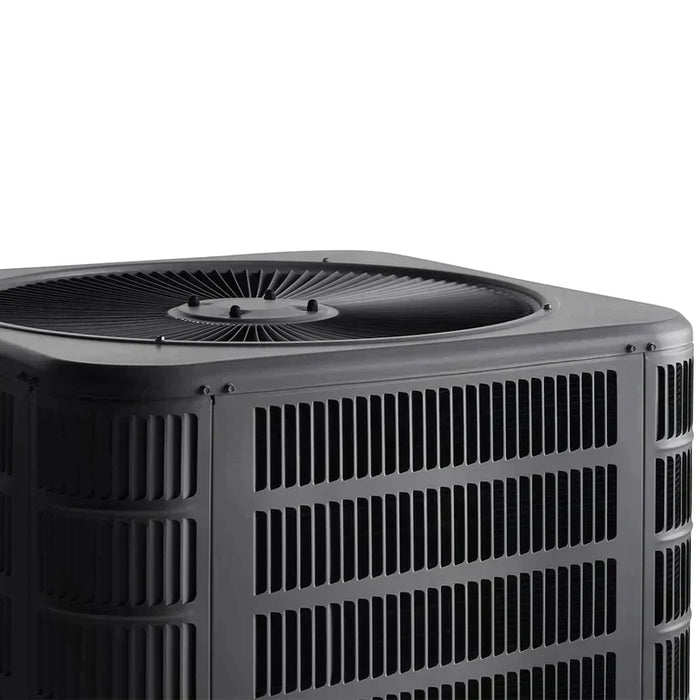

MRCOOL 4 Ton 16 SEER Split System Air Conditioner Condenser

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 4 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).

Features

CoolGuard total corrosion protection technology designed coil
Corner-mounted controls for easy service
Full metal louvered construction to protect the coil/ hail protection
Factory installed high pressure switch
Thread-on pressure switches for simple, quick replacement
10 year limited warranty on compressor
Charged for 15 feet of line set
Fan orifice for smoother airflow and sound level reduction
Lanced fins for maximum heat transfer
Every coil factory tested for leak proof construction
All units ETL and ETLC approved and AHRI Certified
Internally protected against high temperature motor overload conditions

Specifications

Product Dimensions	28.25"W x 37"D x 28.25"H
Product Weight	218 lbs
Unit Type	Split System AC Condensers
SEER	up to 16
Max SEER	16
EER	11.7
CFM	1500-1600
Tonnage	4
Cooling Capacity	46500-47500
Voltage	Requires a minimum of 208V-230V/60HZ/ 40A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60
Stage	Single
Max Fuse Breaker	40 A
Min Circuit Ampacity	24.2
Color	Gray
Rated Load	18
Max Coverage Area	2000
Refrigerant Type	R-410A
Refrigerant Volume	156
Decibel Rating	78
Min Ambient Cool	(-20F)
Line Set Length	15ft, 25ft, 35ft, 50ft
Max Line Set Length	50ft
Line Set Fitting Type	Sweat
Liquid Line Size	3/8 in
Suction Line Size	7/8
Compressor Motor Type	Scroll
Condenser Fan Motor Type	Direct Drive
Condenser Fan Motor HP	1/4
Condenser Fan Motor RPM	825
Metering Device	TXV
Auxiliary Heater	Yes
Auxiliary Heater Sizes	7.5kw, 10kw, 15kw, 20kw
Certifications	ETL AHRI
Warranty	10 year registered parts warranty
